RS232 RS485 SC Fiber Ethernet Media Converter 3W SFP Port

Brand Name : E-link

Model Number : LNK-ICF01-SFP

Certification : RoHS,CE,FCC

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal

Supply Ability : 100000

Delivery Time : 3 working days

Packaging Details : Standard Export Package

Fiber Connector : SC standard, ST/FC/LC optional

Fiber Distance : 50/125um MMF: 2Km 9/125 SMF:20/40/60/80Km

Physical Interface : Industrial Terminal

Operation Temperature : -25°C to +70°C

Dimensions : 95(L)*70(W)*28(H) mm

Weight : 0.25kg/pcs

Serial Distance : RS232: 15 meters, RS-485: 1200 meters

Power Supply : DC12V

Contact Now

CAN Bus Serial RS232/RS485 to Fiber Optic Converter

Overview

LNK-ICF01 Series is an industrial grade CAN Bus/RS-232/RS-485 to fiber optic converter which converts a standard CAN bus/RS-232/RS-485 signal transceiver to a fiber optic link as to extend the signal up to 2Km on multimode fiber and 80Km on single mode fiber.

The use of optical fiber communication solves the problems of electromagnetic interference, ground ring interference and lightning damage.

It greatly improves the reliability, security and confidentiality of data communication, and can be widely used in various industrial control, process control, and traffic control occasions.

Features

Plug-and-play, hot pluggable

Extends CAN Bus, Bi-directional RS-232 / RS-485 transmission up to 2Km on MMF, 80Km on SMF

EIA /TIA standard RS232, RS-485, 0-115200Kbps Baud rate

CAN data is fully transparent, baud rate is self-adaptive, no setting is required

The CAN interface speed complies with the international CAN1.0 and CAN2.0 standards

Industrial Din-rail mount / Wall Mount Compact size rugged case

Built-in surge and static protection

Diagnostic and unit indicator LEDs

Wide temperature range

Technical Indexes

Model LNK-ICF01 Series
Fiber Connector SC standard, ST/FC/LC optional
Fiber Distance

50/125um MMF: 2Km

9/125 SMF:20/40/60/80Km

CAN Bus Interface
Protocol Comply with international CAN1.0, CAN2.0 standards
No. of Ports 1
Rate 0~1000Kbps
Physical Interface Industrial Terminal
CAN Signals CAN_H, CAN_L, GND
Serial Interface Industrial Terminal
Standard EIA /TIA RS232, RS-485
Serial Distance RS232: 15 meters, RS-485: 1200 meters
Rate 0-120Kbps
Baud Rate 0 ~ 115,200k Baud
RS-232 TXD, RXD, GND - Bi-directional
RS-485 D+, D-, GND - Bi-directional
Power Supply DC12V
Power rate <3W
Static protection 15KV electric static discharge (ESD) protection
Surge protection 1500W/sec surge protection
Operation Temperature -25°C to +70°C
Storage Temperature -40°C to +85°C
Storage Humidity 5%~90% non-condescending
Dimensions 95(L)*70(W)*28(H) mm
Weight 0.25kg/pcs

Ordering Information

Model Description
LNK-ICF01-SFP CAN Bus Serial RS232/RS485 to Fiber Optic Converter with SFP port
LNK-ICF01-SCMM CAN Bus Serial RS232/RS485 to Fiber Optic Converter, SC MM 850nm,2km
LNK-ICF01-SC20 CAN Bus Serial RS232/RS485 to Fiber Optic Converter, SC SM 1310nm, 20km
Mounting Options Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options Power Supply needs to be purchased separately

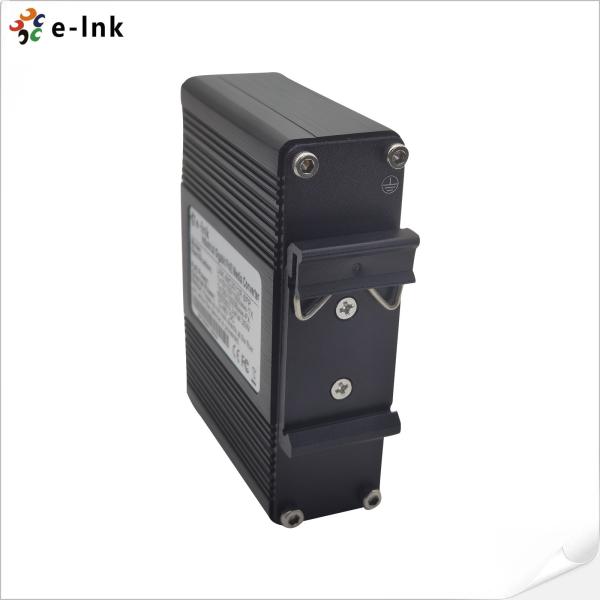

Product Pictures

RS232 RS485 SC Fiber Ethernet Media Converter 3W SFP Port

RS232 RS485 SC Fiber Ethernet Media Converter 3W SFP Port

RS232 RS485 SC Fiber Ethernet Media Converter 3W SFP Port
