Din Rail Managed Fiber Switch Industrial L2+ 12 Port 1000X SFP + 2 Port 1000X SFP

Name: Din Rail Managed Fiber Switch Industrial L2 12 Port 1000X SFP 2 Port 1000X SFP
Brand: E-link
Price: 1 USD

Wholesale Din Rail Managed Fiber Switch Industrial L2+ 12 Port 1000X SFP + 2 Port 1000X SFP from china suppliers

Brand Name : E-link

Model Number : ETH-DIMC2012FM

Certification : CE,FCC,RoHs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiate

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 2000 pcs/per month

Delivery Time : 7 working days

Packaging Details : Managed Ethernet Switch Standard Export Package

Keywords : industrial managed ethernet switch

Mounting Options : DIN-Rail mount

Input Power : 12~48VDC Redundant Power

DIP : 4-digit DIP switch function

Fiber Port : 14-Port 1000Base-X SFP

USB-C : 1 x USB-C (for Management)

Contact Now

Din Rail Managed Fiber Switch Industrial L2+ 12-Port 1000X SFP + 2-Port 1000X SFP
Managed Fiber Switch 14-Ports Advantages

► Support 12x1000Base-X SFP + 2x1000Base-X SFP

► DIP Switch supports one-key VLAN, one-key Ring Management

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► IP40 Aluminum Case
Network Switch with 14-Ports SFP Technical Indexes

Interface
Optical Port:	14 x 1000Base-X SFP
USB-C:	1 x USB-C (for Management)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	VLAN	ON - Enabled	OFF - Disabled
	SW 2	Ring Management	ON - Enabled	OFF - Disabled
	SW 3	Reserved	ON - Reserved	OFF - Reserved
	SW 4	Reserved	ON - Reserved	OFF - Reserved

Din Rail Managed Fiber Switch Overview
ETH-DIMC2012FM series is an Industrial 14 Port L2+ Managed Gigabit SFP Switch. It comprises of a 12-Port 100/1000Base-X SFP fiber optic interface and 2 extra 1.25G SFP interfaces delivered in an IP40 case with redundant power system, being able to operate under the temperature range from -40 to 80 Degree Celsius, the ETH-DIMC2012FM can be placed in virtually any environment.
Din Rail Managed Fiber Switch Industrial L2+ 12 Port 1000X SFP + 2 Port 1000X SFP

Din Rail Managed Fiber Switch Industrial L2+ 12 Port 1000X SFP + 2 Port 1000X SFP
Industrial Network Switch With 14-port SFP Ordering Information

Model	Description
ETH-DIMC2012FM	Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
SFP Options	SFP option. Please select your SFP on our SFP Options Page
SFP Options	SFP module is to be purchased separately.
Mounting Options	Default DIN-Rail Bracket installed
Power Options	DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	Power Supply is to be purchased separately.

Product Tags:

Din Rail Managed Fiber Switch

Industrial L2+ Managed Fiber Switch

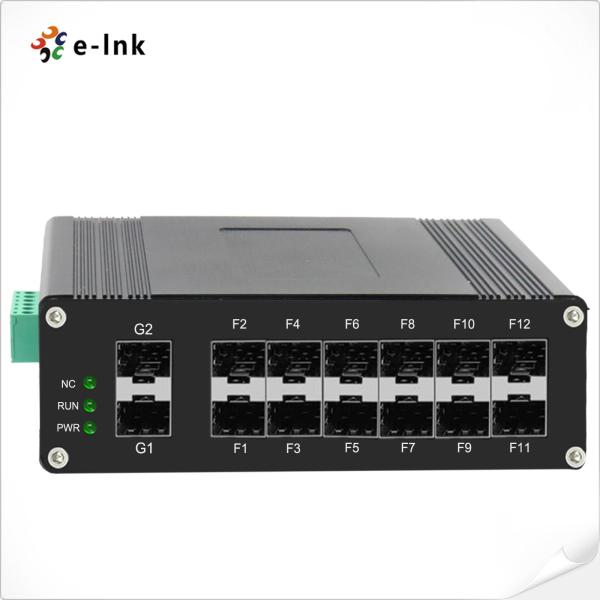

Din Rail Managed Fiber Switch Industrial L2+ 12 Port 1000X SFP + 2 Port 1000X SFP Images
