Centralized Manageable Ethernet Fiber Media Converter , 16 Slots Fiber Optic Media Converter

Name: Centralized Manageable Ethernet Fiber Media Converter 16 Slots Fiber Optic Media Converter
Brand: E-link
Price: 1 USD

Wholesale Centralized Manageable Ethernet Fiber Media Converter , 16 Slots Fiber Optic Media Converter from china suppliers

Brand Name : E-link

Model Number : LNK600-R16

Certification : CE/FCC/Rohs

Place of Origin : Guangdong, China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000pcs Per Month

Delivery Time : 4-6 days

Packaging Details : Standard export package

Fiber Port : SC or LC

Slot : 16

Manage card : 1

Power supply : AC220V or DC-48V f

Name : ethernet fiber media converter

Contact Now

Description:

16-Slot Multifunctional Management System is a Ethernet and SDH transmission equipment with high price/performance ratio.

·Support 10/100M Fiber Ethernet Media Converter,

·Support 10/100/1000M Fiber Ethernet Media Converter

·Support 1 Fx + 2 Tx Fiber Ethernet Media Converter

·Support 125M~4.25G OEO Fiber Media Converter

·Support 10G OEO Fiber Media Converter

·Support variety of data rate, SM/MM, single fiber/double fiber, SFP, SFP+, and XFP etc.

·With simple set-up and complete function management interface, it supports protocols like SNMP, WEB, CONSOLE and TELNET, and realizes the integrated management to all chassis

Functions:

◆Network based on GUI, easy operation with graded management mode (common user, super user and administrator)

◆With centralized management and Top tree, several chassis can be managed in the same interface at the same time; with grouping management any converter can be conveniently manipulated among many converters

◆Master/slave structure,providing management module (master, slave), maximum 4 chassis which can hold 128 fiber ports and RJ45 ports cascaded can be managed

◆Supporting protocols like CONSOLE, WEB, Telnet and SNMP

◇Console management: Users can set up IP and users’ authority, display/control local and remote media converters with WINDOWS

◇WEB management: Users can set up IP and users’ authority, display/control local and remote media converters with WEB on browser, such as IE

◇Standard SNMP protocol: It offers MIB files, convenient to be merged to the third party’s SNMP; users’ can set up 4 TRAP address, choose TRAP irritation factor according to users’ needs, such as Link to Down for TX, and Link to Down for FX.

◇Special management software: Control center operates backstage with special management software, adopts information and keeps in management PC hard disk as database. It can set up users’ authority and display/control local and remote media converters

◆Management information

◇Supporting network device auto-sensing and adding

◇Complete system information can be set up and displayed, including the name of the chassis, terrain information, related information of IP, constant operating time and the versions of the hardware and soft ware

◇Real time display of voltage and temperature on the cards of the media converters, temperature of chassis and report fault in time

◇Supporting SFP/XFP, CWDM SFP/XFP and DWDM SFP/XFP, and it can show the SFP/XFP information and digital diagnosis function

Product Tags:

gigabit ethernet media converter

ethernet fiber media converter

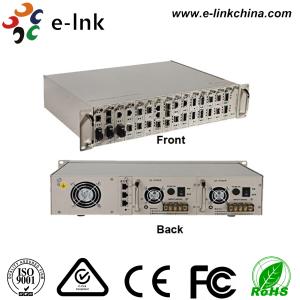

Centralized Manageable Ethernet Fiber Media Converter , 16 Slots Fiber Optic Media Converter Images
