1-Ch HDMI Video + 1-Ch 10 100M Ethernet over Fiber Extender

Name: 1Ch HDMI Video 1Ch 10 100M Ethernet over Fiber Extender
Brand: E-link
Price: 1 USD

Wholesale 1-Ch HDMI Video + 1-Ch 10 100M Ethernet over Fiber Extender from china suppliers

Brand Name : E-link

Model Number : LNK-HD-FE

Certification : CE, RoHS, FCC

Place of Origin : China

MOQ : 1 pcs

Price : negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card

Supply Ability : 1000pcs/month

Delivery Time : 5-12working days

Packaging Details : Standard Export Package

Fiber Module : 1310nm Single Mode Transmitter & Receiver

Fiber Connector : SC Duplex Connector

Transmission Distance : 1080P 36bit @60Hz 20Km(Maximum)

Operating Temperature : -5°C to 35°C(23°F to 95°F)

Dimensions (WxDxH) : TX & RX: 154x99.5x27mm

Net Weight : Transmitter:410g, Receiver:410g

Contact Now

1-Ch HDMI Video + 1-Ch 10/100M Ethernet over Fiber Extender

HDMI Fiber Extender Advantages

► Automatically adapt range of input signal sampling frequency (32～100KHz)

► Provides high-resolution image quality.

►Plug-and-play operation - no programming or setup required.

►Extends 1080p HDMI signals up to 20km over a optic cable.

► Optical fiber use rules out any RF interference.

►Ethernet Pass-Through.

► Built in IR remote control.

HDMI Fiber Extender Technical Indexes

Operating Temperature	-5°C to 35°C(23°F to 95°F)
Storage Temperature	-10°C to 70°C(14°F to 158°F)
Operating Humidity	10 to 90%RH (No Condensation)
Storage Humidity	5 to 90%RH (No Condensation)
Fiber Module	1310nm Single Mode Transmitter & Receiver
Fiber Connector	SC Duplex Connector
Transmission Distance	1080P 36bit @60Hz 20Km(Maximum)
Power consumption	TX:8watts; RX:8watts((Maximum)
IR wavelength &frequency	Wavelength:940nm,frequency 38kHz
Dimension (L×W×H)	TX & RX: 154x99.5x27mm
Net Weight	Transmitter:410g, Receiver:410g,
LED Indicators	Power, Link/Act and Speed

Industrial Ethernet Media Converter Overview

LNK-HD-FE HDMI over Fiber Extender is a high quality HDMI Extender product, extends 1080P HDMI Signal up to 20km over a single optical fiber cable, built in IR remote control, and with Ethernet pass through. It provides high resolution image quality; 1080p high definition video, let people can enjoy clear HD Video effects.

1-Ch HDMI Video + 1-Ch 10 100M Ethernet over Fiber Extender

Product Tags:

100M HDMI Video Extender

Ethernet over Fiber Extender

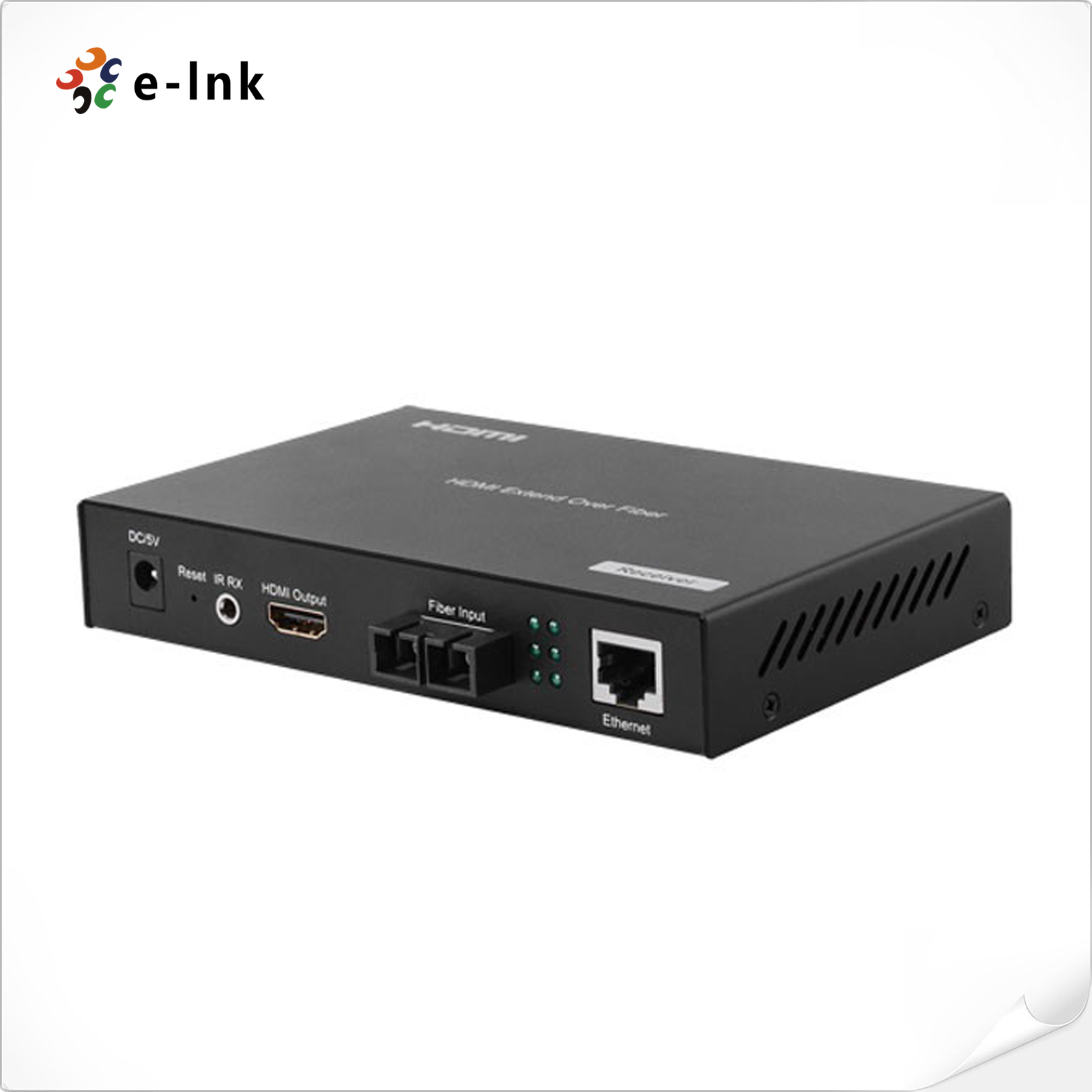

1-Ch HDMI Video + 1-Ch 10 100M Ethernet over Fiber Extender Images
